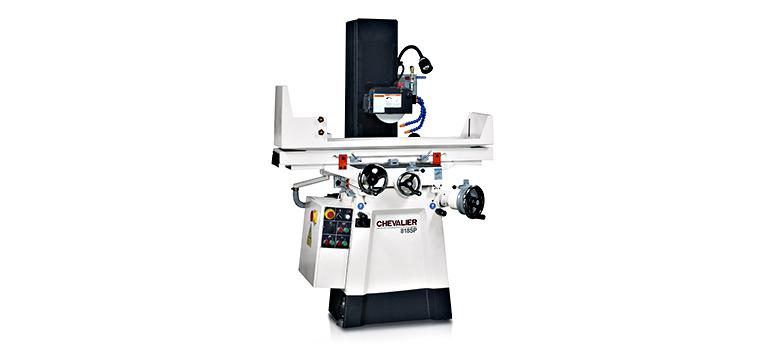

FSG-618SP

  • Manual Surface Grinders(M/SP series) FSG-618M
  • Manual Surface Grinders(M/SP series) FSG-618M
Manual Surface Grinders(M/SP series) FSG-618M Manual Surface Grinders(M/SP series) FSG-618M

Manual Surface Grinders(M/SP series) FSG-618M

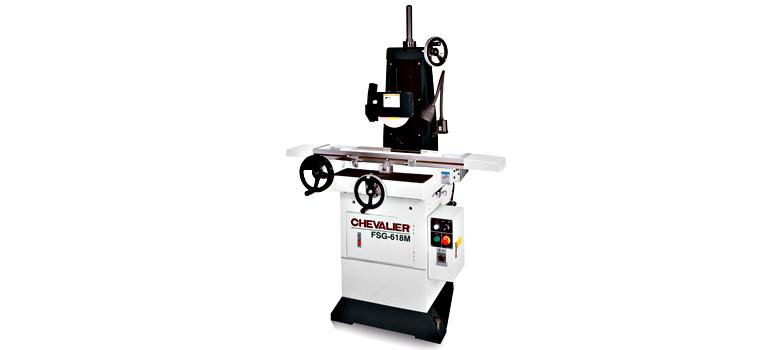

  • FSG-618M
  • FSG-612SP
  • Product description: Ball Table ways Double "V" + Turcite-B on Z-Axis Table Travel: 175 x 480mm (7" x 19") Chuck Size: 150 x 450mm (6" x18") Table Surface to Spindle Center: 450mm (18") Spindle Speed: 3,450rpm Spind
  • INQUIRY
  • This high precision surface and form grinder has been specially developed and improved in recent years.
  • The tool cabinet in machine base is specially designed for operator’s convenience (618m).
  • The interlock between electrical cabinet door and power supply is established to ensure safe operation.
  • The maximum distance from table surface to spindle centerline is 18" (450mm) which provides more clearance for grinding.
  • The sping loaded type table travel stops will dampen theovertravel caused by abnormal operations (618m).
  • The optimum span of double V crossfeed guideways is designedbased on bending moment, kinematics supporting force.
  • All essential castings are mode of high grade of meehanite castiron that is stress relieved through annealing to eliminateinternal stress.
  • With the greatest stiffness and stability of the castings, this machine is suitable for both precision surface grinding and formgrinding .
  • This grinder is offered with one-full-year limited warranty formechanical and electrical parts .
